  • TP-0433-010 Chrome Frequensator Style Trapeze Tailpiece For Archtop Guitar

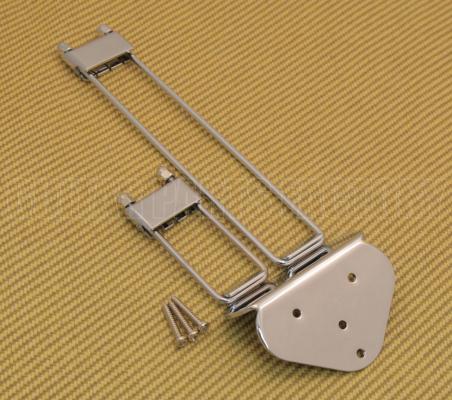

TP-0433-010 Chrome Frequensator Style Trapeze Tailpiece For Archtop Guitar

Chrome finish Frequensator style split trapeze tailpiece. This split fork design originated on archtop models from the 40's. The difference in fork length alters string tension behind the bridge to add depth to the bottom strings and brilliance to the top strings. Mounting Bracket. Width of plate with mounting screws = 2 17/32 in. (64.3mm) Length of mounting bracket side with mounting holes = 1 39/64 in. (41mm) from end to bend. Length of mounting bracket from bend to trapeze hook tops = 1 13/64 in. 30.5mm). Length of short trapeze to top of string retainer bar (not including nut heights) = 2 1/2 in. (63.35mm). Short bracket width = 1 3/64 in. (26.65mm). String Bracket width = 1 3/16 in. (30.35mm). Length of long Trapeze section including string bracket = 6 in. (152mm). Widths of each trapeze and string bracket are equal.

  • Brands Aftermarket
  • Item #: TP-0433-010
  • Availability: In Stock

  • $27.00


Tags: Frequensator Trapeze Tailpiece
