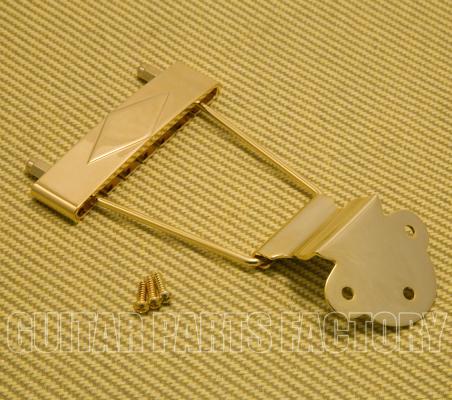

T120SG Diamond Gold Short Trapeze Tailpiece for Guitar ES-335 Short Style

Gold ES-335 diamond trapeze tailpiece. This is a short version of the standard ES-335 style tailpiece which was also used on many arched top instruments. Overall length of Tailpiece not including hinge = 3 1/8 inches. Side to Side width at bar = 3 9/32 inches. Width of string bar = 47/64 inches. String Spacing at Bar = 1 61/64 inches. Important Hinge/Mounting Specs: Mounting Area of Hinge length = 1 1/2 inches. Mounting Area of Hinge Width - 2 inches. Mounting hole location bottom center = 11/32 inch from bottom edge Two Mounting hole locations from side edges = 5/16 inches. Two mounting hole locations Apart from eachother = 1 25/64 inches. Upper side of hinge length = 1 1/8 inches. Upper side of Hinge width = 1 25/64 inches

  • Brands WD
  • Item #: T120SG
  • Availability: In Stock

  • $29.00
