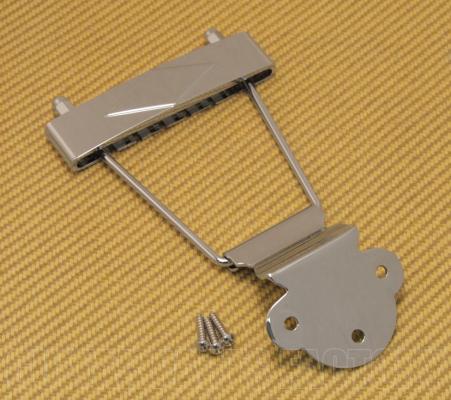

T120SC Diamond Chrome Short Trapeze Tailpiece for Guitar ES-335 Short Style

335 Short Chrome Guitar Tailpiece & Screws.

Overall length of Tailpiece not including hinge = 3 1/8 inches
Side to Side width at bar = 3 9/32 inches
Width of string bar = 47/64 inches
String Spacing at Bar = 1 61/64 inches

Important Hinge/Mounting Specs:
Mounting Area of Hinge length = 1 1/2 inches
Mounting Area of Hinge Width - 2 inches
Mounting hole location bottom center = 11/32 inch from bottom edge
Two Mounting hole locations from side edges = 5/16 inches.
Two mounting hole locations Apart from eachother = 1 25/64 inches

Upper side of hinge length = 1 1/8 inches
Upper side of Hinge width = 1 25/64 inches

• Brands WD
• Item #: T120SC
• Availability: In Stock

• $23.00
