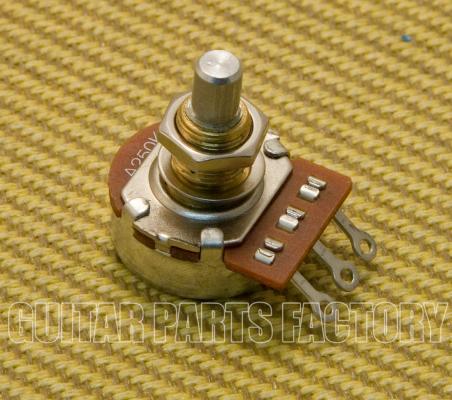

R-VA250KA (1) Alpha 250k Audio Solid Shaft Full Size Potentiometer
(1) Alpha 250K solid shaft potentiometer, audio, 3/8" bushing. 24 mm carbon composition. 300 rotation. 1/2" watt, 500VDC rating. Audio taper. 1/4" diameter shaft. Body diameter 24mm (0.95"). Bushing diameter 8mm 0.31". Shaft diameter 0.25". Shaft length 0.34". Bushing length 0.26". Body depth 0.46". Threading M8 X 0.75. Shaft rotation 300. Max rating 0.25 W, 250 VDC audio.
- Brands Alpha
- Item #: R-VA250KA
- Availability: In Stock
-
$3.99
